- disconnect the negative battery cable;
- remove the ashtray;
- remove the center console;

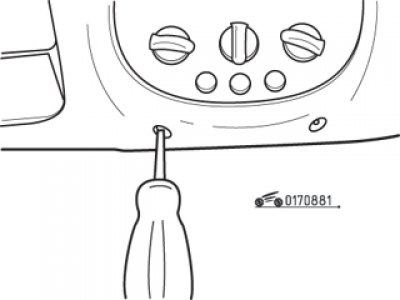

Fig. 8.81. Heating and ventilation control panel mounting screws
- unscrew the two screws securing the panel (Fig. 8.81) and remove it;

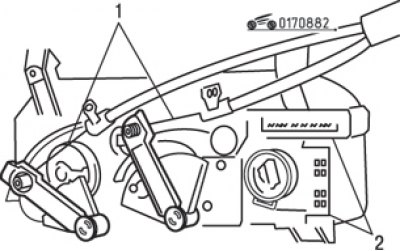

Fig. 8.82. Reverse side of the heating and ventilation control panel: 1– control cables; 2-pin connectors
- disconnect cables 1 (Fig. 8.82) from the panel, contact connectors 2 and drive cables from the levers of the turning mechanisms on the air distributor unit.
(Text provided by an online resource RENAULTBOOK)
Installation is carried out in the reverse order of removal.
Check the adjustment of the air distribution and shift flap drive cables.
